Aberlink CMM’s
Product Type: CMM's
Manufacturer: Aberlink CMM
Description
Aberlink Innovative Metrology is the largest UK-owned manufacturer of coordinate measuring machines.
Aberlink’s CMMs and innovative metrology products are renowned throughout the world for being easy to use, great value for money and providing customers with measuring solutions they can trust. We design and manufacture products that increase component through-put and remove inspection bottlenecks, helping to exceed quality requirements.
Specifications
XTREME – 300mm x 300mm with Volumetric Accuracy: (3 + 0.4L/100) µm with Volumetric Accuracy TP20 (3 + 0.4L/100) µm, and 0.5 µm Scale Resolution
AXIOM TOO – 640mm x 600mm (900, 1200, 1500) x 500mm with Volumetric Accuracy TP20 (2.4 + 0.4L/100) µm
AXIOM TOO HS – 640mm x 600mm (900, 1200, 1500, 1800) x 500mm with Volumetric Accuracy TP20 (2.4 + 0.4L/100) µm, and 0.1 µm Scale Resolution

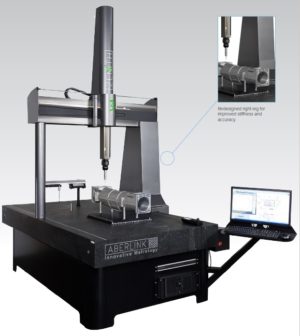

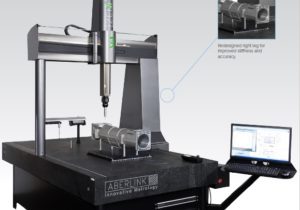

ZENITH 3 – 1000mm x 1000mm (1500, 2000, 2500, 3000) x 600mm (800) with Volumetric Accuracy TP20 (2.7 + 0.4L/100) µm, and 0.5 µm Scale Resolution
AZIMUTH – 1200mm x 1000mm (1500, 2000, 2500, 3000) x 1000mm with Volumetric Accuracy TP20 (2.9 + 0.4L/100) µm, and 0.1 µm Scale Resolution
