Series MG Force Gage
Product Type: Force and Torque
Manufacturer: Mark-10
Description

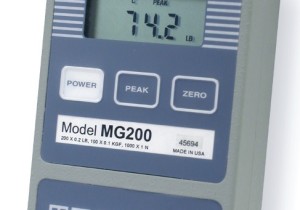

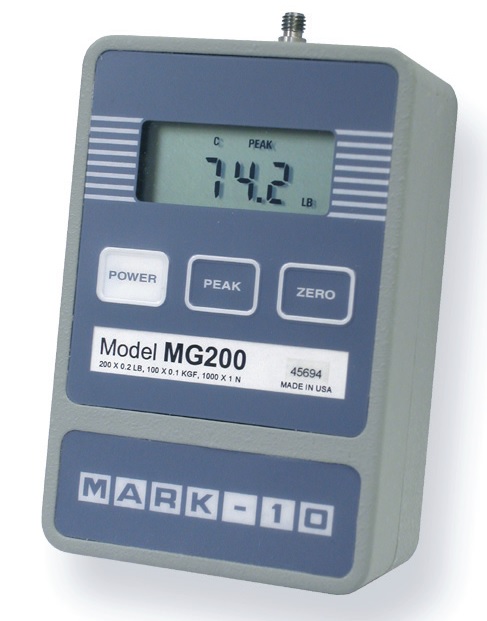

The Series MG Digital Force Gauge is an economical instrument for push and pull
testing up to 500 lbF (2,500 N). A rugged reversible aluminum housing allows for
hand-held use or test stand mounting. Three pushbuttons allow the user to easily select
units of measurement, reset zero, and recall tensile and compressive peak loads. The
MG is compatible with all Mark-10 force measurement test stands and gripping fixtures.
Specifications
Accuracy: ±0.5% of full scale
Power: AC or non-rechargeable 9V battery, with Intelligent Power Management System
(IPM). IPM warns the user via a “LO BAT” indicator and then will power off the gauge.
Battery life: 30 hours of continuous use
Selectable units of measurement: lbF, N, kgF/gF (depending on model)
Load cell deflection (at full scale): See Ordering Information
Safe overload: 150% of full scale (display shows “----” at 110% and above)
Weight (gauge only): MG012 - MG200: 0.7 lb [0.3 kg], MG500: 0.87 lb [0.4 kg]
Environmental requirements: 40° F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Housing construction: Aluminum
Included accessories: Hook, flat
Warranty 3 years (see individual statement for further details)
