Series TT01 Digital Cap Torque Testers
Product Type: Force and Torque
Manufacturer: Mark-10
Description

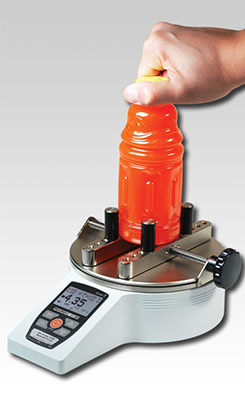

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.
Series TT01 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Specifications
Accuracy: ±0.3% of full scale
Sampling Rate: 7,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Units: ozFin, lbFin, kgFcm, Nm, Ncm
Outputs: USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
Weight: 8.4 lb [3.8 kg]
Included items: Set of four 1.25” length posts, universal voltage AC adapter, battery, quickstart guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration (certificate with data available for an additional charge).
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
Warranty: 3 years (see individual statement for further details)
