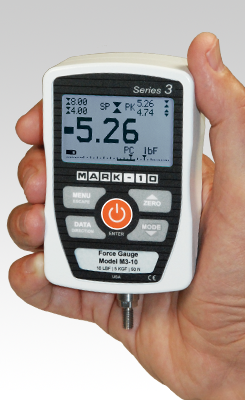

Series 3 Digital Force Gage
Product Type: Force and Torque
Manufacturer: Mark-10
Description
Series 3 digital force gauges are designed for tension and compression force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.
Series 3 gauges include MESURTM Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel button easily allows for further data manipulation.
Specifications
Accuracy: ±0.3% of full scale ±1 digit
Sampling Rate: 2,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is
displayed, gauge shuts off automatically when power is too low.
Battery life: Backlight on / off: up to 7 / 24 hours of continuous use
USB Output: Configurable to 115,200 baud.
Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only): M3-012 - M3-100: 0.7 lb [0.33 kg]
M3-200 - M3-500: 0.9 lb [0.41 kg]
Load cell deflection: All models 0.010 [0.25], except 0.005 [0.13] for M3-012
Included items:
Carrying case with chisel, cone, V-groove, hook, flat, extension rod,
universal voltage AC adapter, battery, quick-start guide, USB cable,
resource CD (USB driver, MESURTM Lite software, MESURTMgauge
DEMO software, user’s guide), NIST-traceable certificate of calibration
(certificate with data is available for an additional charge).
Environmental
requirements: 40 - 100°F, max. 96% humidity, non-condensating
Warranty: 3 years (see individual statement for further details)
